SCP Processor Issues 🖥️

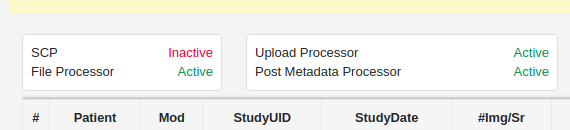

Issue: SCP Processor is Shown as Inactive 🔴​

SCP Processor Issue

This issue can happen due to the following reasons -​

1. SCP Port Occupied by Another Process 🚦​

It is possible that there is already some other application in the client system that is using the receiver’s default port (11112).

Solution:

  • Check if the SCP port is occupied by other applications.
Follow the steps in this collapsible to check if the SCP port is occupied
Check through Resource Monitor 💻

  1. Open Resource Monitor:

    • Press Ctrl + Shift + Esc to open the Task Manager.
    • Go to the "Performance" tab.
    • Click on "Open Resource Monitor" at the bottom.

  2. Navigate to the Network Tab:

    • In the Resource Monitor, switch to the "Network" tab.

  3. Check Listening Ports:

    • Find the "Listening Ports" section which lists all ports currently in use and their associated processes.

  4. Search for Your Specific Port:

    • Look through the list or use the search feature to find your specific port.

  5. Identify the Process Using the Port:

    • The "Process" column will show you the name of the process using the port.
Check through Command Prompt ⌨️

  1. Open Command Prompt:

    • Search for "cmd" in the Windows search bar and open Command Prompt.

  2. Use the netstat Command:

    • Type netstat -aon | findstr :<port_number> and press Enter.
    • Replace <port_number> with the actual port number you're checking.

  3. Interpret the Output:

    • The output shows the protocol, local address, foreign address, state, and the PID of the process using the port.
    • No output means the port is not in use.

  4. Find the Process Using the PID:

    • Use the Task Manager's "Details" tab to match the PID to a process.
Check through PowerShell 🧰
  • Using PowerShell:
    • Type Get-Process -Id (Get-NetTCPConnection -LocalPort <port_number>).OwningProcess in PowerShell.
    • Replace <port_number> with the port you're checking.
  • If SCP port is occupied, then change the scp_port in config.json to 11113 or any other available port.

2. Spaces in the Installation Folder 🛠️​

The receiver internally invokes some executables to run the processors based on the paths provided. However, if there is a space in the installation path, invoking the executables fails.

Cause:

  • In Windows command-line interfaces, spaces are used as delimiters to separate different arguments or parameters. Spaces in the executable path may cause the shell to interpret each part of the path as a separate argument.

Temporary Solution:

  • Ensure that there are no spaces in the installation path of the receiver.

Permanent Fix:

  • This issue will be resolved in the next release of the software.
